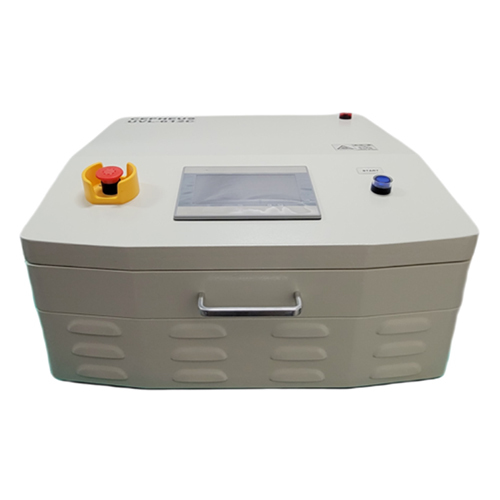

Semi-Auto LED UV Irradiation Machine

Product Details:

Automation Grade Semi-Automatic
Machine Type UV Irradiation
Feeding System Manual Feeding Conveyor
Function Type Irradiation, Curing, Disinfection
Noise Level <65 dB
Phase Single Phase
Operating Temperature 5C 45C
Share Your Product:

100.00 - 3.00 USD ($)/Set

Get a Price/Quote

Request To Call Back Send Inquiry

Semi-Auto LED UV Irradiation Machine Price And Quantity

Minimum Order Quantity 1 Set
Price Range 100.00 - 3.00 USD ($)/Set

Semi-Auto LED UV Irradiation Machine Product Specifications

Function Type Irradiation, Curing, Disinfection
Noise Level <65 dB
Color White & Blue
General Use Surface Curing, Printing, PCB Exposure
Phase Single Phase
Feature Energy Efficient, Uniform Irradiation
Control System Digital Touch Panel
Machine Type UV Irradiation
Feeding System Manual Feeding Conveyor
Voltage 220V / 50Hz
Computerized Yes
Product Shape Rectangular Cabinet
Dimension (L*W*H) 1100 x 600 x 1200 mm
Type UV LED Curing Machine
Automation Grade Semi-Automatic
Capacity Up to 200 pieces/hour
Product Type LED UV Irradiation Machine
Automatic Semi-Automatic
Power 500 W
Installation Type Floor Mounted
Frequency 50-60 Hz
Heating Method LED UV (No Thermal Heating)
Raw Material Stainless Steel
Weight (kg) Approx. 85 kg
Features Low Maintenance, High Intensity UV Irradiation, User Friendly
Material Stainless Steel Body with Acrylic Cover
Operating Temperature 5C 45C
Power Source Electric
Speed Mode Adjustable Speed Conveyor

Semi-Auto LED UV Irradiation Machine Trade Information

FOB Port TAIWAN
Supply Ability 2-5 Set Per Month
Delivery Time 12 Week
Packaging Details Carton Packing Wooden Box Packing
Certifications D-U-N-S65-868-8684 by TUV Rheinland

Product Description

The Semi-Auto LED UV Irradiation Machine provides coating and curing with high accuracy, precision & uniformity. Equipped with detached coating and curing component parts for the coating of prints, it has an UV chamber for an intact curing. It is particularly arranged to meet the particular market demands by yielding uniform coating. The Semi-Auto LED UV Irradiation Machine is suited for all varieties of Offset and Digital prints like Minolta, Noritsu, Ricoh, Konica, Photo papers Canon, Kodak, HP Indigo, Xerox and more.

The UVD-612 series program control UV curing system gives preciseness controlling and repeatable UV tape curing for single frame wafer processing and the UVD-612 touch panel help in displaying all process factors on-line with the 300 mm diameter UV irradiation window, UV-800 have the ability to handle all standard wafer size up to 8 (200 mm).

Characteristics of Semi-Auto LED UV Irradiation Machine:

Can be effortlessly set up and offer easier utilization.
Friendly HMI touch panel: UV-800 HMI was designed for conveniently to operate, easy to maintain and high stability. It also provide the function of remote control.
On-line monitoring:

status of UV lamps
Life time of UV lamps
total illumination display

Advanced UV Curing Performance

This machine utilizes LED UV technology within the 365-405 nm wavelength for efficient and uniform curing on various substrates. The system delivers high intensity, adjustable UV output, ensuring optimal results for electronics, printing, and adhesive applications without excessive thermal influence.

User Safety and Operational Precision

Safety is integrated with an interlock door sensor, emergency stop button, and a transparent acrylic sliding door for clear visibility during operation. The digital touch panel provides precise control, while the air-cooled mechanism and stainless-steel body ensure durability and reliability in demanding environments.

Optimized Workflow in Industrial Settings

Designed for semi-automatic operation with a manual feeding conveyor and adjustable speed, this UV irradiation machine supports continuous, high-capacity work. It accommodates various shapes and sizes, up to 200 pieces per hour, making it suitable for both batch and continuous production lines.

FAQs of Semi-Auto LED UV Irradiation Machine:

Q: How does the Semi-Auto LED UV Irradiation Machine operate during the curing process?

A: The machine operates semi-automatically by manually feeding items onto the adjustable speed conveyor inside the chamber. The digital touch panel allows you to set UV intensity and conveyor speed. UV LEDs irradiate the products, providing uniform curing while the transparent acrylic sliding door ensures safety and visibility.

Q: What types of applications is this UV LED machine suitable for?

A: This machine is ideal for electronics manufacturing, PCB exposure, adhesive bonding, and printing. It can also be used for surface curing, disinfection, and other processes requiring efficient, controlled UV irradiation.

Q: When should the UV intensity or conveyor speed be adjusted?

A: Adjustments should be made based on your applications requirements. For thicker coatings or larger surfaces, higher UV intensity or slower conveyor speeds may be necessary. Conversely, delicate applications may benefit from lower intensity or increased speed, ensuring optimal curing without damaging sensitive components.

Q: Where is the best environment to install this machine?

A: The UV irradiation machine is designed for floor-mounting in clean, well-ventilated industrial environments. It operates optimally in locations with ambient temperatures between 5C and 45C and low humidity to ensure consistent performance and longevity.

Q: What are the main safety features of the machine?

A: Key safety features include an interlock door sensor that automatically stops UV emission when the door is opened and an emergency stop button for immediate machine shutdown. These features protect operators from accidental UV exposure and allow quick response in case of emergencies.

Q: How does the machine contribute to energy efficiency and maintenance?

A: It uses energy-efficient LED UV lamps with a lifespan exceeding 20,000 hours and an air-cooled system, reducing energy consumption and maintenance frequency. The robust stainless-steel build and simple conveyor system further minimize upkeep, supporting long-term, cost-effective operation.

Q: What are the key benefits of using this LED UV irradiation machine in industrial processes?

A: Users benefit from high-intensity, uniform UV exposure, low operating noise (<65 dB), energy efficiency, and user-friendly digital controls. Its semi-automatic workflow increases productivity up to 200 pieces per hour while maintaining operator safety and consistent product quality.
